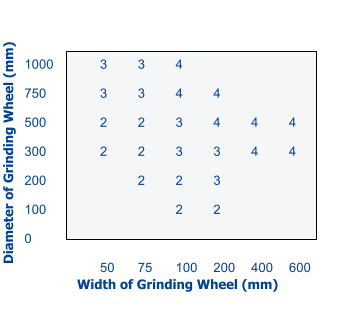

Blade dressing tools with synthetic diamonds are used to dress profiles and radiusses. In accordance with the specification of grinding  wheel and process parameters, the size and configuration of the diamonds are selected with great precision. With respect to natural  diamonds, synthetic diamonds are more sensitive to high temperatures, so cooling liquid is a must when a MCD/CVD is the choice of  dresser. Which shape and how many MCD/CVD do I need? Grinding Wheel Grain Size Diamond Size(Pk) 46 1.1 x 1.1 60 0.8 x 0.8 80 - 120 0.6 x 0.6 150-240 0.4 x 0.4    MCD/CVD ‘s can be mounted in straight or 45 degrees rotated. Following drawings are showing some examples:  Straight            45 deg. Rotated
